Manual press brake is a manual hand brake with the desired angle for bending simple and complex parts, we offer mechanical, manual hydraulic Press brakes. Manual press brake Machine are manually adjusted to the bending angle and size at each cut. It is the most economic type for a common type bend. The small manual press brake is easy to operate, and simple to maintain at a low cost. This industrial machinery manuals are best used for the mass production of set bending dimensions.

Filter

How Does a manual press brake machine work?

The press brake manual includes a work table, hydraulic systems, an oil cooler, and dies. It is operated manually by an operator without computer numerical control (CNC). The operator manually adjusts and positions the material, sets the bending angle, and applies force to perform the bending operation. The operator manually adjusts the back gauge to the desired position, ensuring the correct bend location. Manual press brake operation & setup are much more complex than a 33 ton CNC press brake.

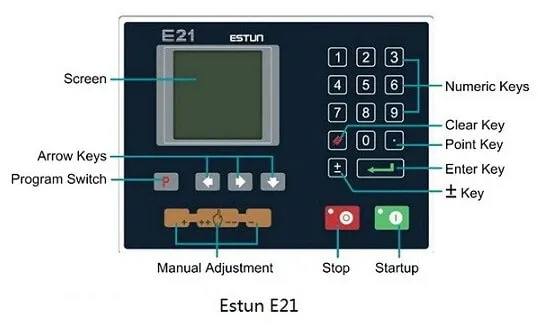

Digital Display

What can manual hydraulic brakes provide?

This manual pan brake ranged from a small manual press brake to a heavy duty 600ton. It can be adjusted the bending force, manual press brake back gauge and V die set. Need more information on how to use a press brake and crowning? Length of sheet bends? Please call for the solution and the best manual press brake price and press brake operation manuals.

Manual Press Machine Standard Configuration

Rexroth Valve

Gear Pump- US Sunny

Seal Rings- US Parcker

Electricals-Schneider

Fast clamp for tool change

Converter to position one time

Hydraulic Crowning/Laser for option

Standard tool or custom tools supported

Customize your require Now

SEND A QUOTE

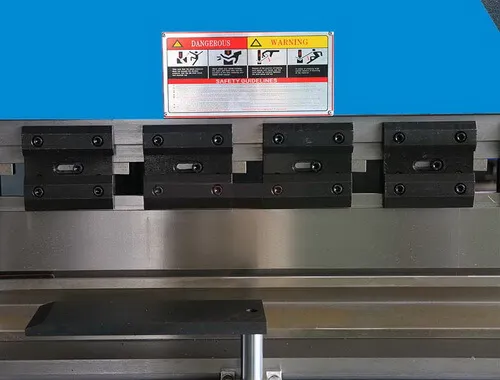

    Fast Clamp

    Fast Clamp for tool quick change

    Laser for option.

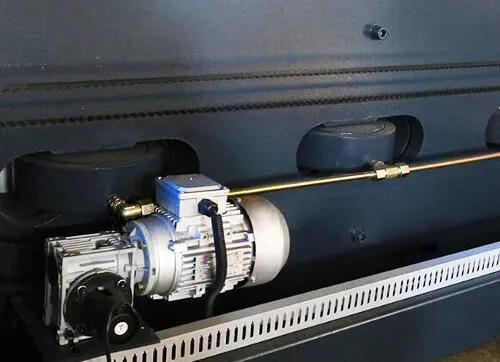

    Step Motor

    X axis is driven by a step motor and inverter with high positioning.

    Unique design for synchronized transmission mechanism

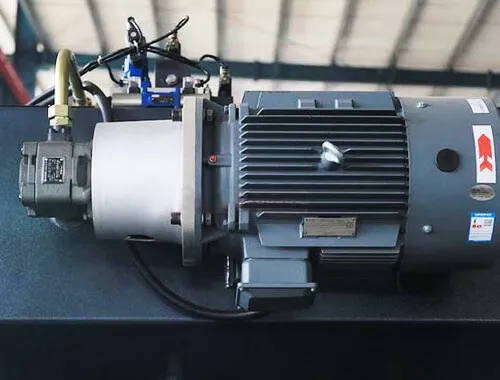

    Gear Pump and Motor

    The servo model accuracy: +-0.01mm, the noise decrease to 25 decibels, Reduce energy consumption by 60%, consumption of 70% less hydraulic oil, and 30% high efficiency.

    Imported Gear Pump with less noise


    Sheet Metal Brake Press Back Gauge

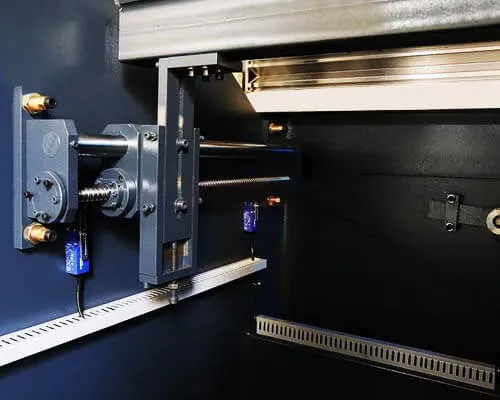

    Ball screw with high accuacy for productivity

    Unique design for synchronized transmission mechanism

    backguage
    Tools

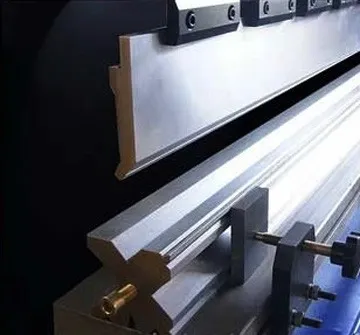

    Manual Press Brake Dies

    Standard punch and die with segments

    Custom Press Brake Tools supported

    Manual Press Brake Machine

    Model

    WC67Y

    Force
    (KN)

    Bending length
    (mm)

    Vertical distance (mm)

    Throat depth (mm)

    Stroke
    (mm)

    Max. opening (mm)

    Main power (Kw)

    Weight Approx. (Kg)

    Dimension(L×W×H)mm

    40T/2200

    400

    2500

    1850

    230

    100

    320

    5.5

    2750

    2200×1200×1910

    40T/2500

    400

    3200

    1850

    230

    100

    320

    5.5

    3000

    2500×1200×1910

    50T/2500

    500

    2500

    1850

    230

    100

    320

    5.5

    3400

    2500×1210×2000

    63T/2500

    630

    2500

    1900

    250

    100

    320

    5.5

    4000

    2500×1300×2210

    63T/3200

    630

    3200

    2560

    250

    100

    320

    5.5

    4800

    3200×1300×2210

    80T/2500

    800

    2500

    1990

    300

    100

    320

    7.5

    5000

    2500×1400×2300

    80T/3200

    800

    3200

    2560

    320

    100

    350

    7.5

    6020

    3200×1500×2300

    80T/4000

    800

    4000

    2960

    320

    100

    350

    7.5

    7000

    4000×1500×2400

    100T/2500

    1000

    2500

    1980

    320

    150

    350

    11

    6000

    2500×1600×2400

    100T/3200

    1000

    3200

    2540

    320

    150

    400

    11

    6500

    3200×1600×2600

    100T/4000

    1000

    4000

    2950

    320

    150

    400

    11

    8000

    4000×1600×2700

    125T/3200

    1250

    3200

    2550

    320

    150

    400

    11

    6800

    3200×1600×2600

    125T/4000

    1250

    4000

    2940

    320

    150

    400

    11

    8200

    4000×1600×2700

    160T/3200

    1600

    3200

    2540

    320

    200

    460

    11

    11000

    3200×1700×2700

    160T/4000

    1600

    4000

    2940

    320

    200

    460

    11

    11500

    4000×1700×2800

    160T/5000

    1600

    5000

    3940

    320

    200

    460

    11

    14000

    5000×1900×3100

    160T/6000

    1600

    6000

    4940

    320

    200

    460

    11

    18500

    6300×1900×3200

    200T/3200

    2000

    3200

    2540

    320

    200

    460

    11

    11000

    3200×1950×2800

    200T/4000

    2000

    4000

    2940

    320

    200

    460

    11

    12200

    4000×1950×2800

    200T/5000

    2000

    5000

    3940

    320

    200

    460

    11

    14500

    5000×1950×3000

    200T/6000

    2000

    6000

    4940

    320

    200

    460

    11

    18500

    6000×1950×3300

    250T/3200

    2500

    3200

    2530

    400

    250

    590

    18.5

    17500

    3250×2000×3200

    250T/4000

    2500

    4000

    2930

    400

    250

    590

    18.5

    18700

    4000×2000×3400

    250T/5000

    2500

    5000

    3940

    400

    250

    590

    18.5

    22000

    5000×2000×3400

    250T/6000

    2500

    6000

    4930

    400

    250

    590

    18.5

    26500

    6000×2000×3400

    300T/3200

    3000

    3200

    2520

    400

    250

    590

    22

    19500

    3200×2000×3450

    300T/4000

    3000

    4000

    2920

    400

    250

    590

    22

    21500

    4000×2000×3450

    300T/5000

    3000

    5000

    3920

    400

    250

    590

    22

    24000

    5000×2000×3450

    300T/6000

    3000

    6000

    4920

    400

    250

    590

    22

    29000

    6000×2000×3450

    400T/4000

    4000

    4000

    2910

    400

    250

    590

    30

    23000

    4000×2180×3400

    400T/5000

    4000

    5000

    3910

    400

    250

    590

    30

    28500

    5000×2180×3500

    400T/6000

    4000

    6000

    4910

    400

    250

    590

    30

    35000

    6000×2180×3800

    500T/5000

    5000

    5000

    3900

    400

    250

    590

    45

    44000

    5050×3500×3700

    500T/6000

    5000

    6000

    4900

    400

    320

    590

    45

    55000

    6050×3500×3700

    600T/4000

    6000

    4000

    3000

    400

    320

    590

    55

    45000

    4050×4500×3700

    600T/6000

    6000

    6000

    5000

    400

    320

    590

    55

    60000

    6050×4500×3700

    800T/6000

    8000

    6000

    5000

    400

    320

    590

    55

    75000

    6300×4500×6000

    How It Works?

    Advantages

    The manual hydraulic Press brake is competitive with the best low costs.

    Press brake operation is easy and simple

    Manual Adjustment for some easy handmade work

    Maintenance with less cost



    Applications

    Power Cabinets

    Industrial cabinet box

    Pole Fabrication

    Light Pole

    Elevator Industry

    Elevator

    FAQ- Frequently asked questions

    A manual press brake is a machine for sheet metal bending. It can form pre-bends with different shapes and adjust bending angles manually. It creates the bends by clamping the sheet metal between a punch and a die and shape to various V shapes. The tools can be different to match the bending jobs.

    Different working precision

    A manual press brake is a common bending machine, which creates bends by clamping the sheet metal between a punch and a die for shapes.

    NC press brake is a numerical control press brake with 2 axes for the position.

    and CNC press brake is computer controlled for 3-12 axes for a precision position with higher accuracy.

    Different operation speeds including return speed, down speed, and working speed.

    A torsion bar and NC press brake operation speed depend on the slider's speed, the back gauge's speed , and the bending step's speed .and NC hydraulic machine cylinder is  6:1, the return and down speed is 80mm/s, and the working speed is 100mm/s,  which is slow.

    and CNC cylinder is 13:1, the return and down speed is 200mm/s, and the working speed is 400mm/s, which is fast.
