How To Choose CNC Bending Machine Compensation -Mechanical or Hydraulic

How To Choose CNC Bending Machine Compensation -Mechanical or Hydraulic

In the process of bending, when the CNC bending machine gives force to the sheet metal, the sheet metal will also produce a reaction force on the machine, which will make the machine deform, thus affecting the accuracy of the folded sheet metal. Therefore, to improve the bending accuracy, there are two kinds of bending machine compensation methods, mechanical compensation and hydraulic compensation for these problems. When choosing CNC bending machine, we should consider not only how many tons of bending machine, Cutting edge width, throat depth, and column spacing, but also the compensation model of the CNC bending machine.


since the two kinds of bending compensation modes have different requirements for operators, different product precision, and it is very important for buyers to know what compensation model to choose.

Hydraulic compensation means, there are several small cylinders under the worktable. When the machine is deformed, additional force is applied through these small cylinders to compensate, so as to reduce the influence of machine deformation on the folded plate. In the CNC system of the machine, the parameters of the CNC system of the bending machine are set according to the length and thickness of the folded plate. The required compensation amount is calculated by the computer system, and the instructions are transmitted to the compensation amplifier. Hydraulic compensating proportional valve receives the signal from compensating amplifier to control the small cylinder beneath the worktable to bulge and reduce the deflection and deformation of the sheet metal.


How To Choose CNC Bending Machine Compensation -Mechanical or Hydraulic 1


However, the compensation amount of hydraulic compensation is affected by many factors, such as hydraulic oil leaking, joint loosening, etc., which will affect each hydraulic compensation amount and differences in each processing plate. The advantage of hydraulic compensation is that with the increasing use of time, the machine will not have wear problems, while mechanical compensation will have wear problems.

Comparing with mechanical compensation, the hydraulic compensation machine is easy to operate and has low requirements for workers, so the workpiece with high precision can be folded out. Moreover, the machine with a hydraulic compensation system can ensure full contact between the upper die and the sheet metal, so as not to allow the displacement of the sheet metal. Considering the durability of the machine and the simplicity of operation, it is better to choose the hydraulic compensation machine.


How To Choose CNC Bending Machine Compensation -Mechanical or Hydraulic 2

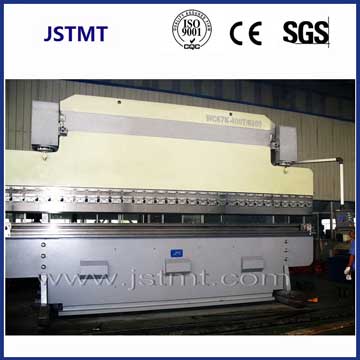

                                    CNC Bending Machine

Hydraulic compensation uses small cylinders to compensate the worktable, while mechanical compensation uses wedge blocks to compensate the worktable. The oblique wedge block can be divided into a single oblique wedge block and a multi-group oblique wedge block. The mechanical compensation consisting of several groups of oblique wedges has more compensation points than three common hydraulic compensation points.

There is no compensation blind zone. The workpiece folded has high precision and a small difference in sheet metal processing each time. It is suitable for batch production.

The CNC Bending Machine mechanical compensation system is simpler than the hydraulic compensation system. It will not leak oil and other conditions. It has a low failure rate and is environmentally friendly. However, mechanical compensation is easy broken parts as time goes by, which will affect the compensation effect. Mechanical compensation operation requires high requirements. If the same workpiece needs bending several times, workers need to adjust it in real-time. Even if the worker has enough experience, unpredictable errors will occur. If the workpiece does not need multiple bending, the worker has higher technology.


How To Choose CNC Bending Machine Compensation -Mechanical or Hydraulic 3


Considering the accuracy of the workpiece, mechanical compensation can be chosen. But in actual production, the cost of the worker with high technology is also expensive, so it should be considered comprehensively.

Generally speaking, mechanical compensation and hydraulic compensation have their own advantages, but they all have shortcomings. For example, a number of CNC bending machine manufacturers with R&D strength, such as some bending machines, mostly through technical development to compensate for mechanical compensation and hydraulic compensation deficiencies, which is also the future development of CNC bending machines needs innovation!
